| Part Number | NTNS3164NZT5G | NTNS3166NZT5G |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Active |
| FET Type | N-Channel | - |
| Technology | MOSFET (Metal Oxide) | - |
| Drain to Source Voltage (Vdss) | 20 V | - |
| Current - Continuous Drain (Id) @ 25°C | 361mA (Ta) | - |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V | - |
| Rds On (Max) @ Id, Vgs | 700mOhm @ 200mA, 4.5V | - |
| Vgs(th) (Max) @ Id | 1V @ 250µA | - |
| Gate Charge (Qg) (Max) @ Vgs | 0.8 nC @ 4.5 V | - |
| Vgs (Max) | ±8V | - |
| Input Capacitance (Ciss) (Max) @ Vds | 24 pF @ 10 V | - |
| FET Feature | - | - |
| Power Dissipation (Max) | 155mW (Ta) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | - |
| Mounting Type | Surface Mount | Surface Mount |

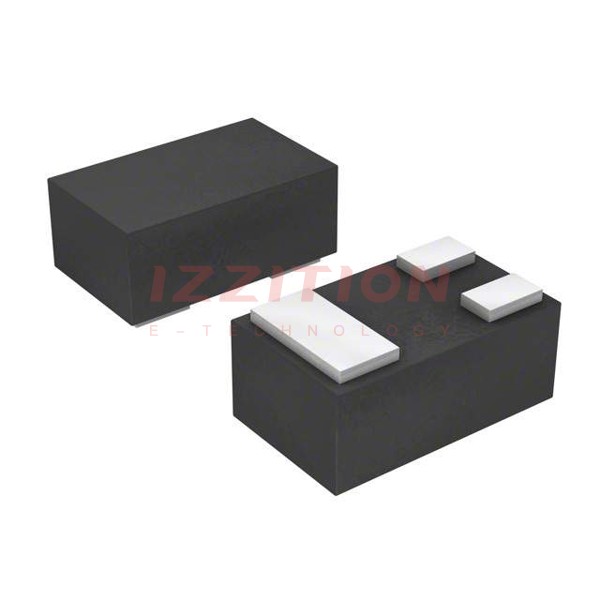

| Supplier Device Package | SOT-883 (XDFN3) (1x0.6) | SOT-883 (XDFN3) (1x0.6) |
| Package / Case | 3-XFDFN | 3-XFDFN |
