onsemi-NTND31015NZTAG - Transistors - FETs, MOSFETs - Arrays Product Specifications and Latest Quotes

FET Type:	2 N-Channel (Dual)
FET Feature:	Standard
Drain to Source Voltage (Vdss):	20V
Current - Continuous Drain (Id) @ 25°C:	200mA
Rds On (Max) @ Id, Vgs:	1.5Ohm @ 100mA, 4.5V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	-
Input Capacitance (Ciss) (Max) @ Vds:	12.3pF @ 15V
Power - Max:	125mW
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	6-XFLGA
Supplier Device Package:	6-XLLGA (0.9x0.65)

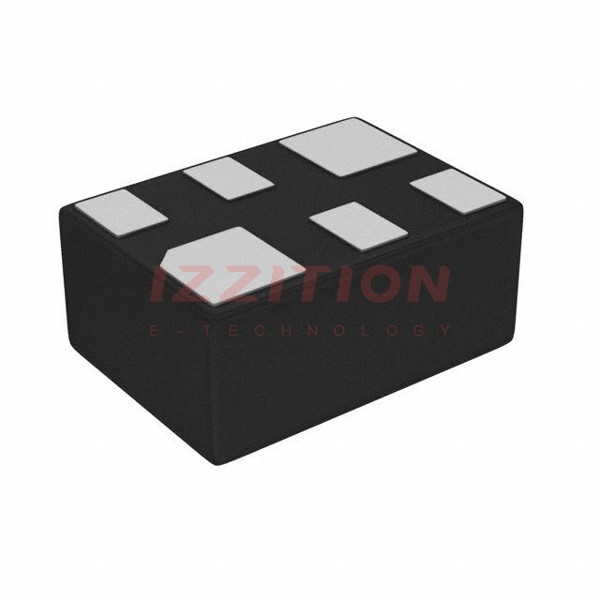

onsemi NTND31015NZTAG
