onsemi-NTMTS4D3N15MC - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	150 V
Current - Continuous Drain (Id) @ 25°C:	22A (Ta), 174A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	8V, 10V
Rds On (Max) @ Id, Vgs:	4.45mOhm @ 95A, 10V
Vgs(th) (Max) @ Id:	4.5V @ 521µA
Gate Charge (Qg) (Max) @ Vgs:	79 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	6514 pF @ 75 V
FET Feature:	-
Power Dissipation (Max):	5W (Ta), 293W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-DFNW (8.3x8.4)
Package / Case:	8-PowerTDFN

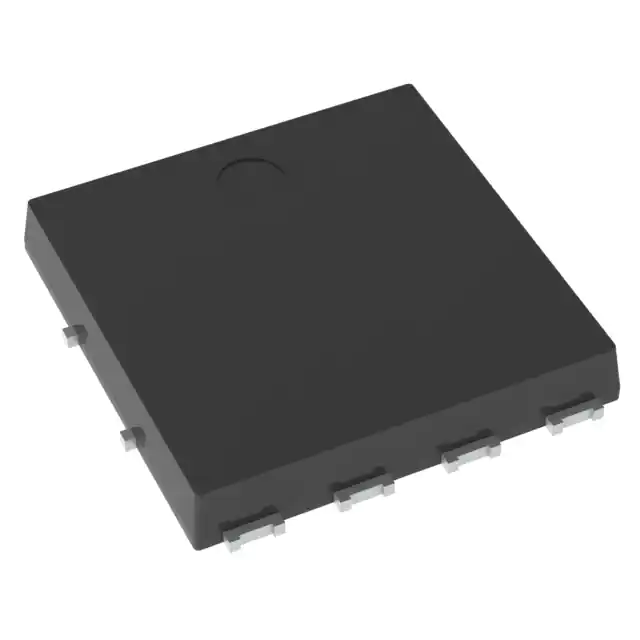

onsemi NTMTS4D3N15MC
