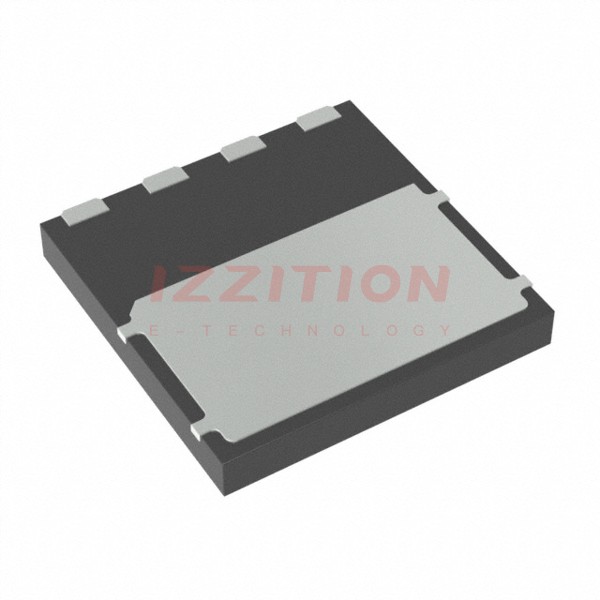

| Part Number | NTMT190N65S3HF | NTMT090N65S3HF | NTMT110N65S3HF | NTMT150N65S3HF | NTMT190N65S3H |
|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V | 650 V | 650 V | 650 V | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 20A (Tc) | 36A (Tc) | 30A (Tc) | 24A (Tc) | 16A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 190mOhm @ 10A, 10V | 90mOhm @ 18A, 10V | 110mOhm @ 15A, 10V | 150mOhm @ 12A, 10V | 190mOhm @ 8A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 430µA | 5V @ 860µA | 5V @ 740µA | 5V @ 540µA | 4V @ 1.4mA |
| Gate Charge (Qg) (Max) @ Vgs | 34 nC @ 10 V | 66 nC @ 10 V | 62 nC @ 10 V | 43 nC @ 10 V | 31 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V | ±30V | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 1610 pF @ 400 V | 2930 pF @ 400 V | 2635 pF @ 400 V | 1985 pF @ 400 V | 1600 pF @ 400 V |
| FET Feature | - | - | - | - | - |
| Power Dissipation (Max) | 162W (Tc) | 272W (Tc) | 240W (Tc) | 192W (Tc) | 129W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 4-PQFN (8x8) | 4-PQFN (8x8) | 4-PQFN (8x8) | 4-PQFN (8x8) | 4-TDFN (8x8) |
| Package / Case | 4-PowerTSFN | 4-PowerTSFN | 4-PowerTSFN | 4-PowerTSFN | 4-PowerTSFN |
