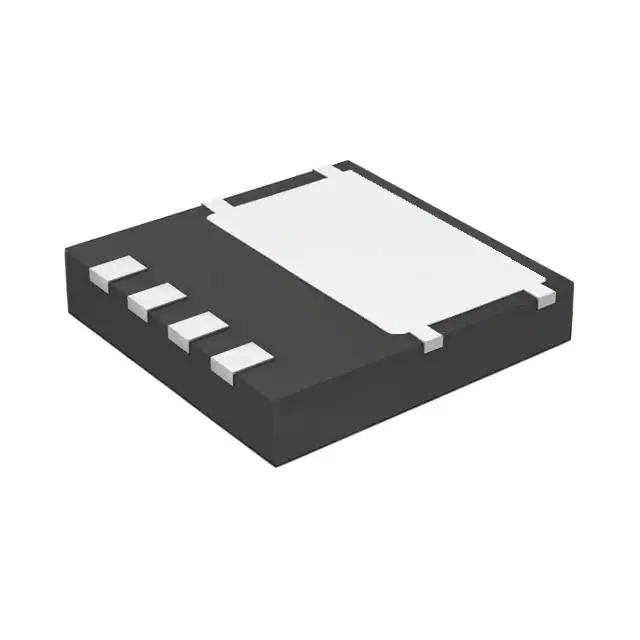

| Part Number | NTMT190N65S3H | NTMT190N65S3HF |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 16A (Tc) | 20A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 190mOhm @ 8A, 10V | 190mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 1.4mA | 5V @ 430µA |
| Gate Charge (Qg) (Max) @ Vgs | 31 nC @ 10 V | 34 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 1600 pF @ 400 V | 1610 pF @ 400 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 129W (Tc) | 162W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | 4-TDFN (8x8) | 4-PQFN (8x8) |
| Package / Case | 4-PowerTSFN | 4-PowerTSFN |
