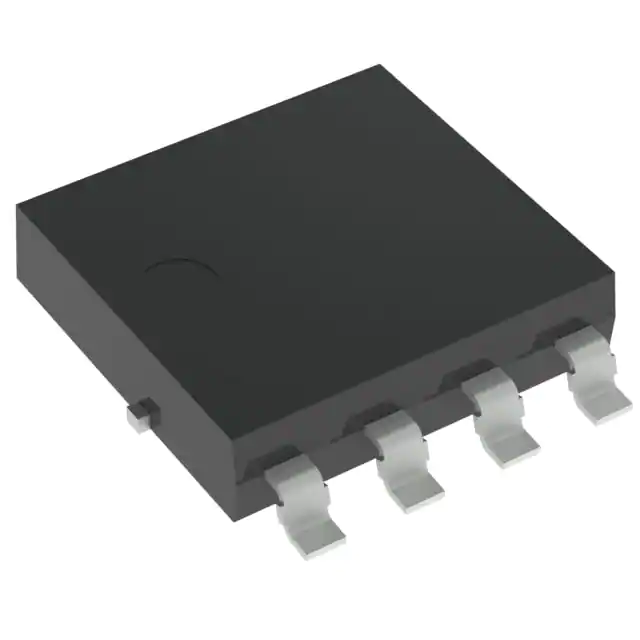

| Part Number | NTMJS1D4N06CLTWG | NTMJS1D6N06CLTWG |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 39A (Ta), 262A (Tc) | 38A (Ta), 250A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 1.3mOhm @ 50A, 10V | 1.36mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 280µA | 2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 103 nC @ 10 V | 91 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 7430 pF @ 30 V | 6660 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 4W (Ta), 180W (Tc) | 3.8W (Ta), 167W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | 8-LFPAK | 8-LFPAK |
| Package / Case | SOT-1205, 8-LFPAK56 | SOT-1205, 8-LFPAK56 |
