onsemi-NTMFSC010N08M7 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	40 V
Current - Continuous Drain (Id) @ 25°C:	12.5A (Ta), 61A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	10mOhm @ 10A, 10V
Vgs(th) (Max) @ Id:	4.5V @ 120µA
Gate Charge (Qg) (Max) @ Vgs:	38 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	2700 pF @ 40 V
FET Feature:	-
Power Dissipation (Max):	3.3W (Ta), 78.1W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-DFN (5x6.15)
Package / Case:	8-PowerVDFN

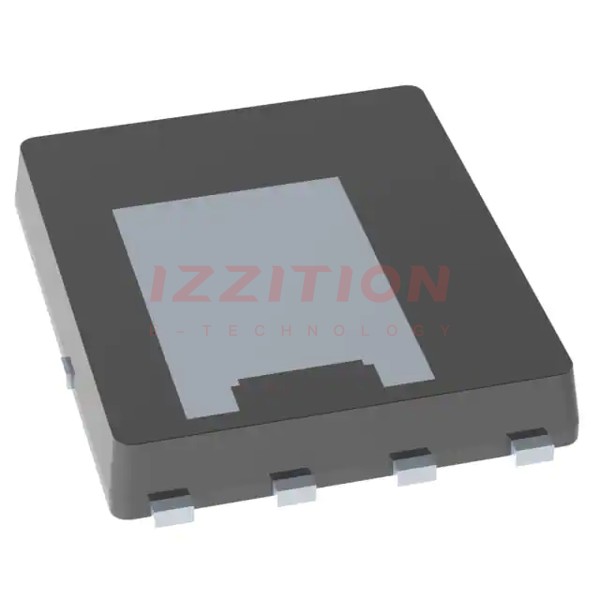

onsemi NTMFSC010N08M7
