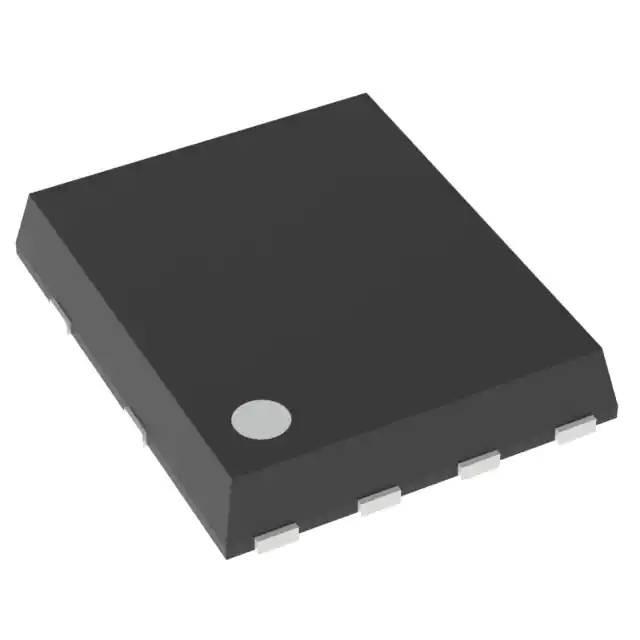

| Part Number | NTMFS4854NST3G | NTMFS4854NST1G |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 15.2A (Ta), 149A (Tc) | 15.2A (Ta), 149A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 3.2V, 10V | 3.2V, 10V |
| Rds On (Max) @ Id, Vgs | 2.5mOhm @ 15A, 10V | 2.5mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 85 nC @ 11.5 V | 85 nC @ 11.5 V |
| Vgs (Max) | ±16V | ±16V |
| Input Capacitance (Ciss) (Max) @ Vds | 4830 pF @ 12 V | 4830 pF @ 12 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 900mW (Ta), 86.2W (Tc) | 900mW (Ta), 86.2W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | SO-8FL | SO-8FL |
| Package / Case | 8-PowerTDFN | 8-PowerTDFN |
