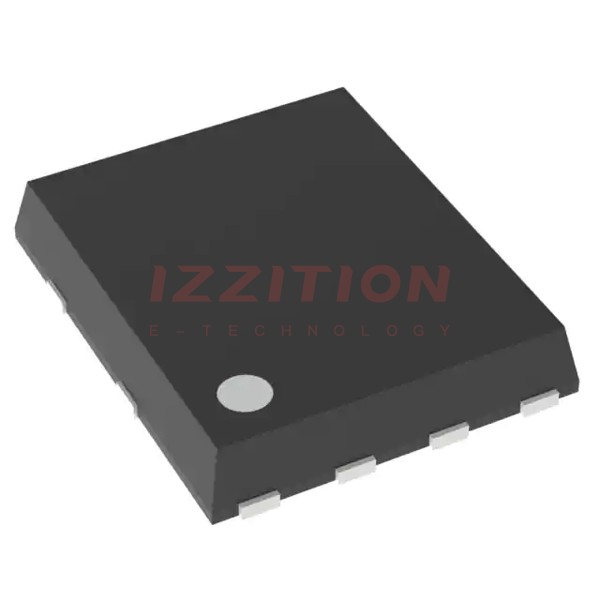

| Part Number | NTMFS4833NST1G | NTMFS4833NT1G | NTMFS4833NST3G | NTMFS4833NAT1G |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 16A (Ta), 156A (Tc) | 16A (Ta), 156A (Tc) | 16A (Ta), 156A (Tc) | 16A (Ta), 191A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | - |
| Rds On (Max) @ Id, Vgs | 2.2mOhm @ 30A, 10V | 2mOhm @ 30A, 10V | 2.2mOhm @ 30A, 10V | 1.9mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA | 2.5V @ 250µA | 2.5V @ 250µA | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 86 nC @ 11.5 V | 88 nC @ 11.5 V | 86 nC @ 11.5 V | 150 nC @ 11.5 V |
| Vgs (Max) | ±20V | ±20V | ±20V | - |
| Input Capacitance (Ciss) (Max) @ Vds | 5250 pF @ 12 V | 5600 pF @ 12 V | 5250 pF @ 12 V | 7500 pF @ 12 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 900mW (Ta), 86.2W (Tc) | 910mW (Ta), 125W (Tc) | 900mW (Ta), 86.2W (Tc) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | SO-8FL | 5-DFN (5x6) (8-SOFL) | SO-8FL | 5-DFN (5x6) (8-SOFL) |
| Package / Case | 8-PowerTDFN | 8-PowerTDFN, 5 Leads | 8-PowerTDFN | 8-PowerTDFN, 5 Leads |
