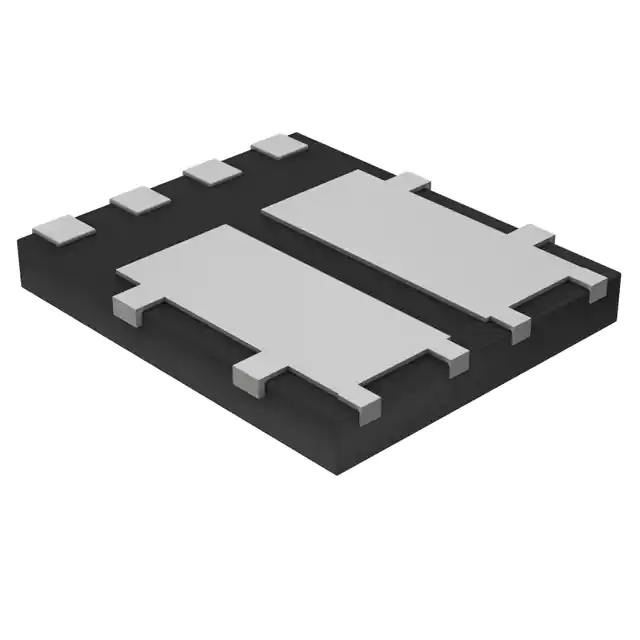

| Part Number | NTMFD5C470NLT1G | NVMFD5C470NLT1G |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Active |
| FET Type | 2 N-Channel (Dual) | 2 N-Channel (Dual) |
| FET Feature | Standard | Standard |
| Drain to Source Voltage (Vdss) | 40V | 40V |
| Current - Continuous Drain (Id) @ 25°C | 11A (Ta), 36A (Tc) | 11A (Ta), 36A (Tc) |
| Rds On (Max) @ Id, Vgs | 11.5mOhm @ 5A, 10V | 11.5mOhm @ 5A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 20µA | 2.2V @ 20µA |
| Gate Charge (Qg) (Max) @ Vgs | 9nC @ 10V | 4nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 590pF @ 25V | 590pF @ 25V |
| Power - Max | 3W (Ta), 24W (Tc) | 3W (Ta), 24W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 8-PowerTDFN | 8-PowerTDFN |
| Supplier Device Package | 8-DFN (5x6) Dual Flag (SO8FL-Dual) | 8-DFN (5x6) Dual Flag (SO8FL-Dual) |
