Please send RFQ , we will respond immediately.

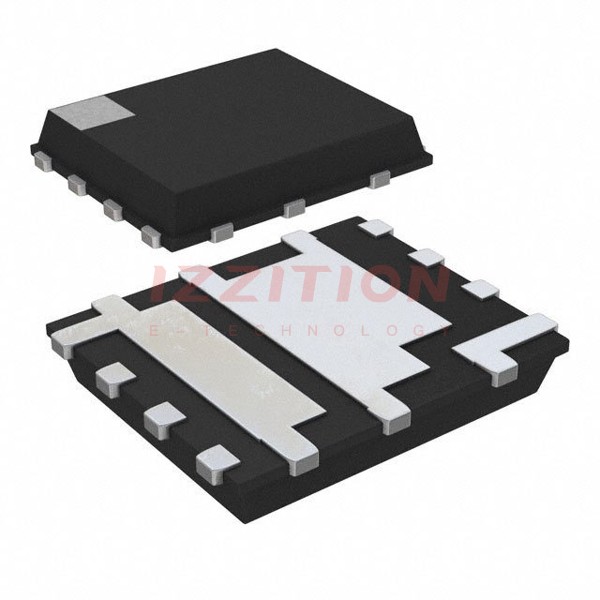

| Part Number | NTMFD4C87NT3G | NTMFD4C88NT3G | NTMFD4C85NT3G | NTMFD4C86NT3G | NTMFD4C87NT1G |
|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | 2 N-Channel (Dual) Asymmetrical | 2 N-Channel (Dual) Asymmetrical | 2 N-Channel (Dual) Asymmetrical | 2 N-Channel (Dual) Asymmetrical | 2 N-Channel (Dual) Asymmetrical |
| FET Feature | Standard | Standard | Standard | Standard | Standard |
| Drain to Source Voltage (Vdss) | 30V | 30V | 30V | 30V | 30V |
| Current - Continuous Drain (Id) @ 25°C | 11.7A, 14.9A | 11.7A, 14.2A | 15.4A, 29.7A | 11.3A, 18.1A | 11.7A, 14.9A |
| Rds On (Max) @ Id, Vgs | 5.4mOhm @ 30A, 10V | 5.4mOhm @ 10A, 10V | 3mOhm @ 20A, 10V | 5.4mOhm @ 30A, 10V | 5.4mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA | 2.2V @ 250µA | 2.1V @ 250µA | 2.2V @ 250µA | 2.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 22.2nC @ 10V | 22.2nC @ 10V | 32nC @ 10V | 22.2nC @ 10V | 22.2nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1252pF @ 15V | 1252pF @ 15V | 1960pF @ 15V | 1153pF @ 15V | 1252pF @ 15V |
| Power - Max | 1.1W | 1.1W | 1.13W | 1.1W | 1.1W |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-PowerTDFN | 8-PowerTDFN | 8-PowerTDFN | 8-PowerTDFN | 8-PowerTDFN |
| Supplier Device Package | 8-DFN (5x6) | 8-DFN (5x6) | 8-DFN (5x6) | 8-DFN (5x6) | 8-DFN (5x6) |
