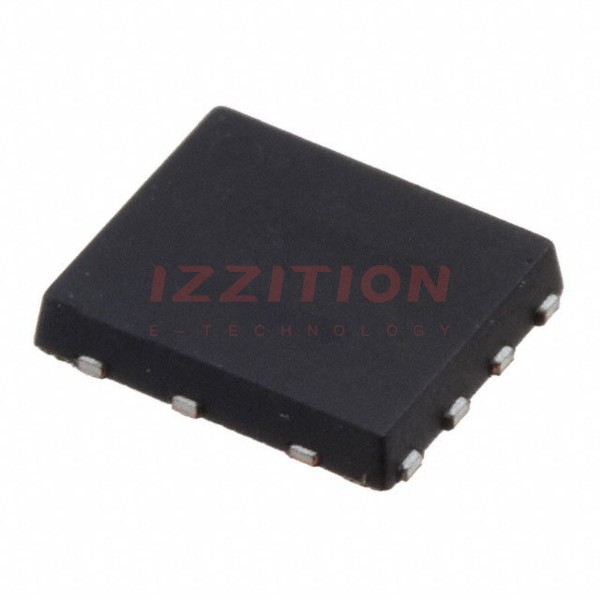

| Part Number | NTMFD4901NFT3G | NTMFD4902NFT3G | NTMFD4901NFT1G |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| FET Type | 2 N-Channel (Dual), Schottky | 2 N-Channel (Dual), Schottky | 2 N-Channel (Dual), Schottky |
| FET Feature | Logic Level Gate | Logic Level Gate | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V | 30V | 30V |
| Current - Continuous Drain (Id) @ 25°C | 10.3A, 17.9A | 10.3A, 13.3A | 10.3A, 17.9A |
| Rds On (Max) @ Id, Vgs | 6.5mOhm @ 10A, 10V | 6.5mOhm @ 10A, 10V | 6.5mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA | 2.2V @ 250µA | 2.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 9.7nC @ 4.5V | 9.7nC @ 4.5V | 9.7nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 1150pF @ 15V | 1150pF @ 15V | 1150pF @ 15V |
| Power - Max | 1.1W, 1.2W | 1.1W, 1.16W | 1.1W, 1.2W |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-PowerTDFN | 8-PowerTDFN | 8-PowerTDFN |
| Supplier Device Package | 8-DFN (5x6) Dual Flag (SO8FL-Dual-Asymmetrical) | 8-DFN (5x6) Dual Flag (SO8FL-Dual-Asymmetrical) | 8-DFN (5x6) Dual Flag (SO8FL-Dual-Asymmetrical) |
