| Part Number | NTLUS4C16NTAG | NTLUS4C16NTBG | NTLUS4C12NTAG |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Last Time Buy | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 9.4A (Ta) | 6.1A (Ta) | 6.8A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 10V | 1.8V, 10V | 3.3V, 10V |
| Rds On (Max) @ Id, Vgs | 11.4mOhm @ 8A, 10V | 11.4mOhm @ 8A, 10V | 9mOhm @ 9A, 10V |
| Vgs(th) (Max) @ Id | 1.1V @ 250µA | 1.1V @ 250µA | 2.1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 7.5 nC @ 4.5 V | 7.5 nC @ 4.5 V | 18 nC @ 10 V |
| Vgs (Max) | ±12V | ±12V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 690 pF @ 15 V | 690 pF @ 15 V | 1172 pF @ 15 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 2.37W (Ta) | 650mW (Ta) | 630mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

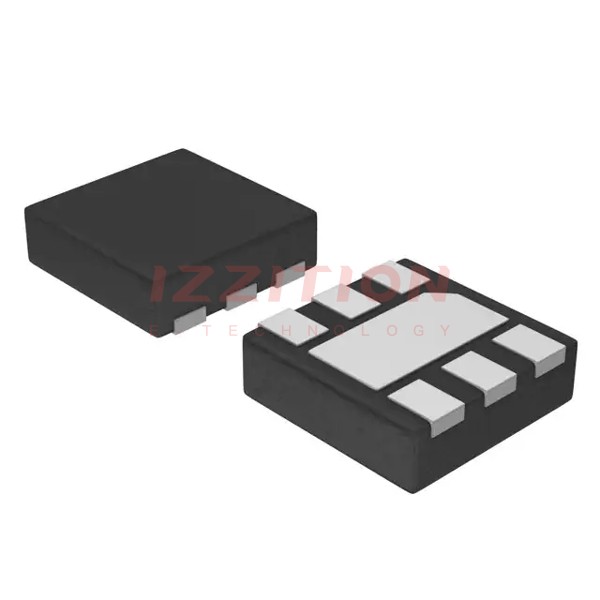

| Supplier Device Package | 6-UDFN (1.6x1.6) | 6-UDFN (1.6x1.6) | 6-UDFN (2x2) |
| Package / Case | 6-PowerUFDFN | 6-PowerUFDFN | 6-UDFN Exposed Pad |
