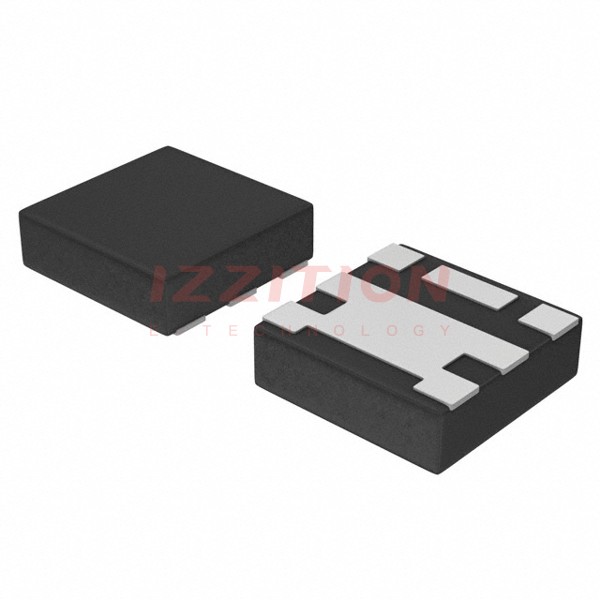

| Part Number | NTLUS4195PZTBG | NTLUS4195PZTAG |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Obsolete |
| FET Type | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 2A (Ta) | 2A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 90mOhm @ 3A, 10V | 90mOhm @ 3A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 5 nC @ 4.5 V | 5 nC @ 4.5 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 250 pF @ 15 V | 250 pF @ 15 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 600mW (Ta) | 600mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | 6-UDFN (1.6x1.6) | 6-UDFN (1.6x1.6) |
| Package / Case | 6-PowerUFDFN | 6-PowerUFDFN |
