| Part Number | NTLUS3A40PZCTAG | NTLUS3A40PZTAG | NTLUS3A40PZCTBG | NTLUS3A90PZCTAG |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| FET Type | P-Channel | P-Channel | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V | 20 V | 20 V | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 4A (Ta) | 4A (Ta) | 4A (Ta) | 2.6A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V | 1.5V, 4.5V | 1.5V, 4.5V | 1.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 29mOhm @ 6.4A, 4.5V | 29mOhm @ 6.4A, 4.5V | 29mOhm @ 6.4A, 4.5V | 62mOhm @ 4A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA | 1V @ 250µA | 1V @ 250µA | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 29 nC @ 4.5 V | 29 nC @ 4.5 V | 29 nC @ 4.5 V | 12.3 nC @ 4.5 V |
| Vgs (Max) | ±8V | ±8V | ±8V | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 2600 pF @ 15 V | 2600 pF @ 15 V | 2600 pF @ 15 V | 950 pF @ 10 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 700mW (Ta) | 700mW (Ta) | 700mW (Ta) | 600mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

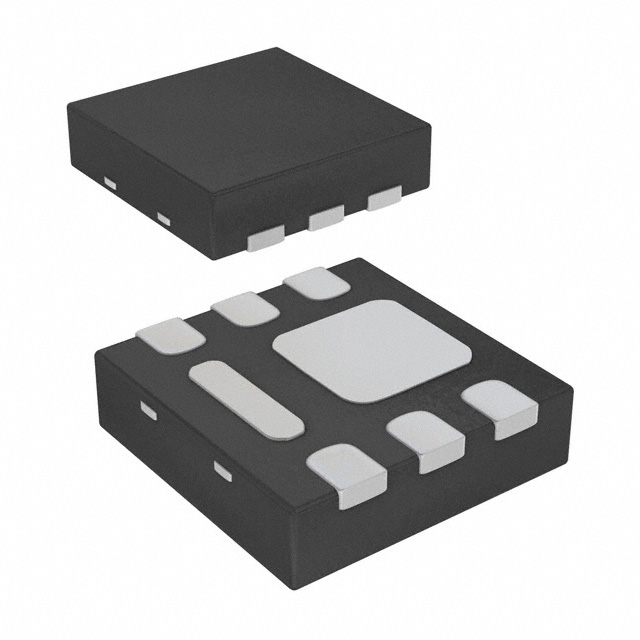

| Supplier Device Package | 6-UDFN (2x2) | 6-UDFN (2x2) | 6-UDFN (2x2) | 6-UDFN (1.6x1.6) |
| Package / Case | 6-UDFN Exposed Pad | 6-UDFN Exposed Pad | 6-UDFN Exposed Pad | 6-PowerUFDFN |
