onsemi-NTLUS029N06T6TAG - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	60 V
Current - Continuous Drain (Id) @ 25°C:	3.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	29mOhm @ 7A, 10V
Vgs(th) (Max) @ Id:	2V @ 15µA
Gate Charge (Qg) (Max) @ Vgs:	7 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	410 pF @ 30 V
FET Feature:	-
Power Dissipation (Max):	600mW (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	6-UDFN (1.6x1.6)
Package / Case:	6-PowerUFDFN

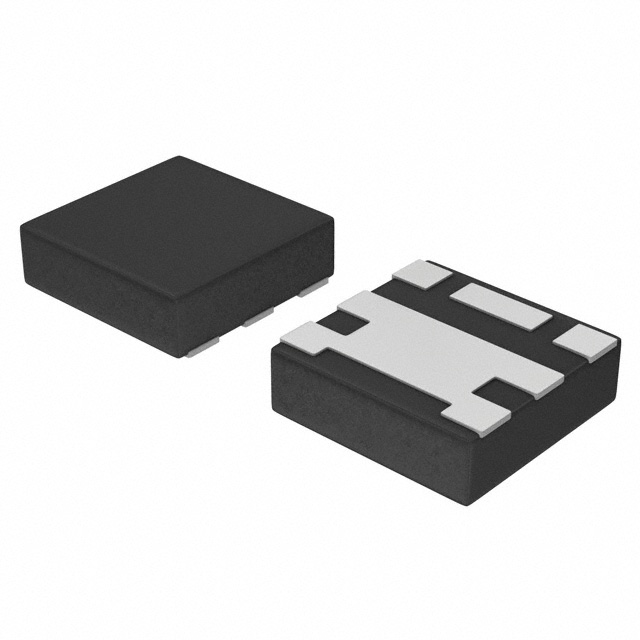

onsemi NTLUS029N06T6TAG
