Please send RFQ , we will respond immediately.

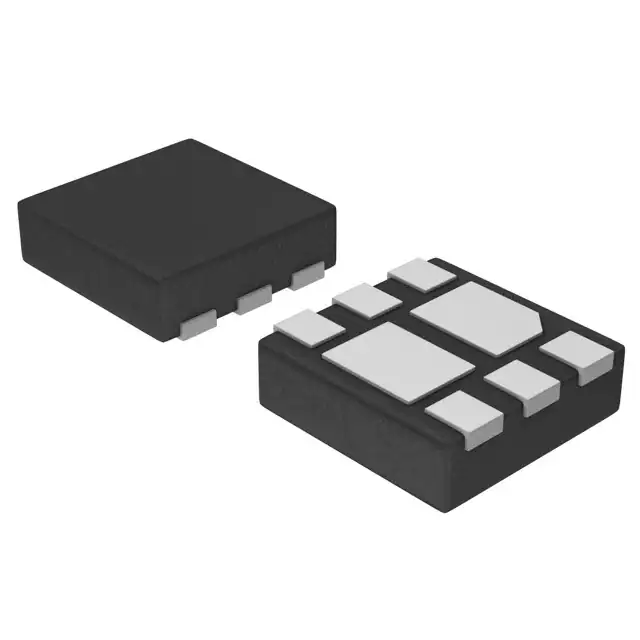

| Part Number | NTLUF4189NZTAG | NTLUF4189NZTBG |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 1.2A (Ta) | 1.2A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 200mOhm @ 1.5A, 4.5V | 200mOhm @ 1.5A, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 3 nC @ 4.5 V | 3 nC @ 4.5 V |
| Vgs (Max) | ±8V | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 95 pF @ 15 V | 95 pF @ 15 V |
| FET Feature | Schottky Diode (Isolated) | Schottky Diode (Isolated) |
| Power Dissipation (Max) | 500mW (Ta) | 500mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | 6-UDFN (1.6x1.6) | 6-UDFN (1.6x1.6) |
| Package / Case | 6-UFDFN Exposed Pad | 6-UFDFN Exposed Pad |
