| Part Number | NTLUD4C26NTBG | NTLUD4C26NTAG |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Obsolete |
| FET Type | 2 N-Channel (Dual) | 2 N-Channel (Dual) |
| FET Feature | Standard | Standard |
| Drain to Source Voltage (Vdss) | 30V | 30V |
| Current - Continuous Drain (Id) @ 25°C | 9.1A (Ta) | 9.1A (Ta) |
| Rds On (Max) @ Id, Vgs | 21mOhm @ 6A, 10V | 21mOhm @ 6A, 10V |
| Vgs(th) (Max) @ Id | 1.1V @ 250µA | 1.1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 9nC @ 4.5V | 9nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 460pF @ 15V | 460pF @ 15V |
| Power - Max | 2.63W | 2.63W |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

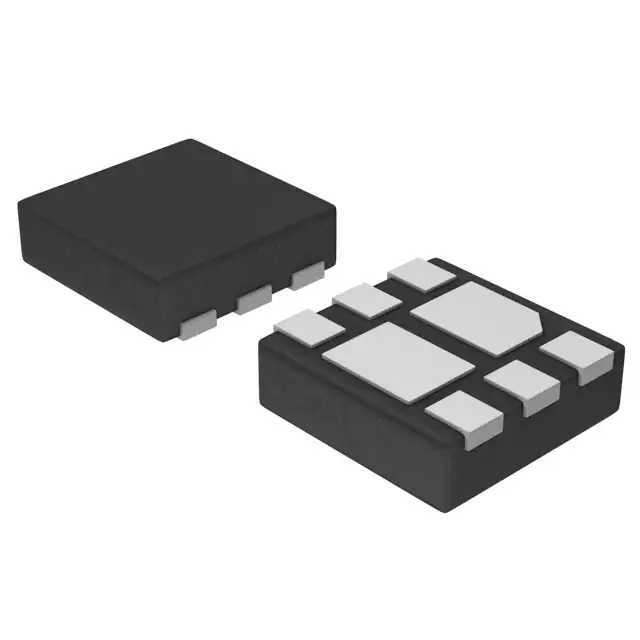

| Package / Case | 6-UDFN Exposed Pad | 6-UDFN Exposed Pad |
| Supplier Device Package | 6-UDFN (2x2) | 6-UDFN (2x2) |
