Please send RFQ , we will respond immediately.
| Part Number | NTLUD3A260PZTBG | NTLUD3A260PZTAG |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Active |
| FET Type | 2 P-Channel (Dual) | 2 P-Channel (Dual) |
| FET Feature | Logic Level Gate | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V | 20V |
| Current - Continuous Drain (Id) @ 25°C | 1.3A | 1.3A |
| Rds On (Max) @ Id, Vgs | 200mOhm @ 2A, 4.5V | 200mOhm @ 2A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 4.2nC @ 4.5V | 4.2nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 300pF @ 10V | 300pF @ 10V |
| Power - Max | 500mW | 500mW |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

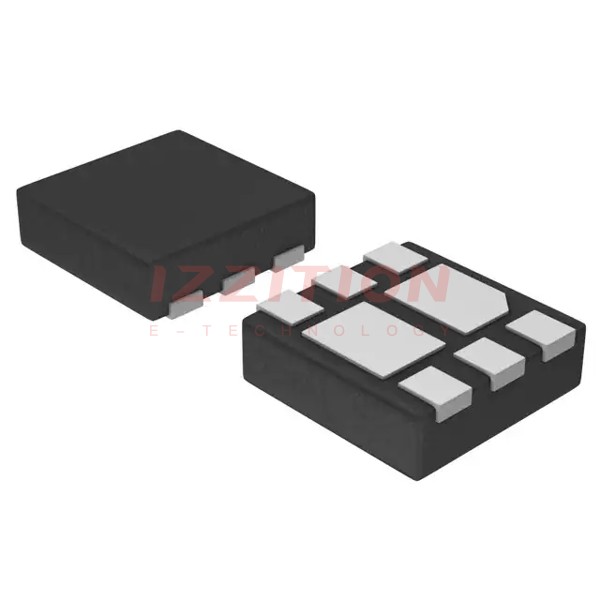

| Package / Case | 6-UFDFN Exposed Pad | 6-UFDFN Exposed Pad |
| Supplier Device Package | 6-UDFN (1.6x1.6) | 6-UDFN (1.6x1.6) |
