onsemi-NTLTD7900ZR2G - Transistors - FETs, MOSFETs - Arrays Product Specifications and Latest Quotes

FET Type:	2 N-Channel (Dual)
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	20V
Current - Continuous Drain (Id) @ 25°C:	6A
Rds On (Max) @ Id, Vgs:	26mOhm @ 6.5A, 4.5V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	18nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:	15pF @ 16V
Power - Max:	1.5W
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount

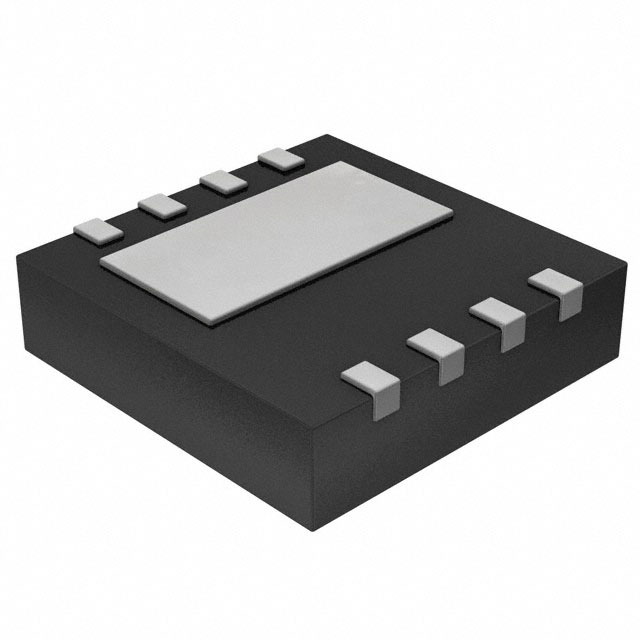

Package / Case:	8-VDFN Exposed Pad
Supplier Device Package:	8-DFN (3x3), (MICRO8 LEADLESS)

onsemi NTLTD7900ZR2G
