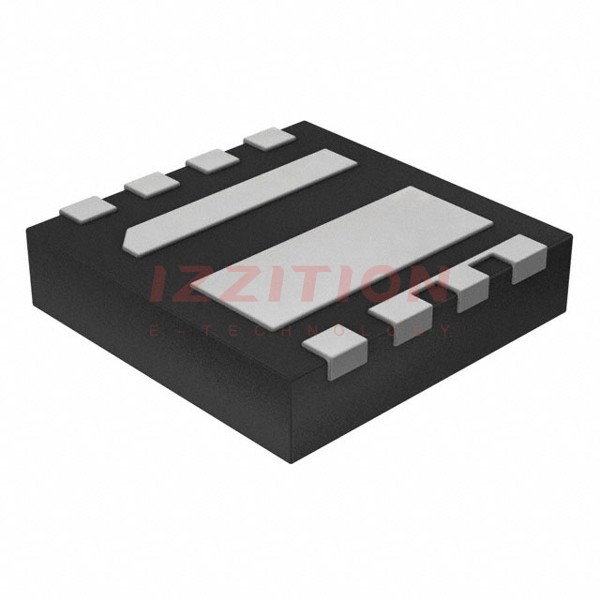

| Part Number | NTLLD4951NFTWG | NTLLD4901NFTWG |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Obsolete |
| FET Type | 2 N-Channel (Dual) Asymmetrical | 2 N-Channel (Dual) |
| FET Feature | Standard | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V | 30V |
| Current - Continuous Drain (Id) @ 25°C | 5.5A, 6.3A | 5.5A, 6.3A |
| Rds On (Max) @ Id, Vgs | 17.4mOhm @ 9A, 10V | 17.4mOhm @ 9A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA | 2.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 12nC @ 10V | 12nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 605pF @ 15V | 605pF @ 15V |
| Power - Max | 800mW, 810mW | 800mW, 810mW |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-WDFN (3x3) | 8-WDFN (3x3) |
