| Part Number | NTLJS1102PTBG | NTLJS1102PTAG |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Obsolete |
| FET Type | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 8 V | 8 V |
| Current - Continuous Drain (Id) @ 25°C | 3.7A (Ta) | 3.7A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.2V, 4.5V | 1.2V, 4.5V |
| Rds On (Max) @ Id, Vgs | 36mOhm @ 6.2A, 4.5V | 36mOhm @ 6.2A, 4.5V |
| Vgs(th) (Max) @ Id | 720mV @ 250µA | 720mV @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 25 nC @ 4.5 V | 25 nC @ 4.5 V |
| Vgs (Max) | ±6V | ±6V |
| Input Capacitance (Ciss) (Max) @ Vds | 1585 pF @ 4 V | 1585 pF @ 4 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 700mW (Ta) | 700mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

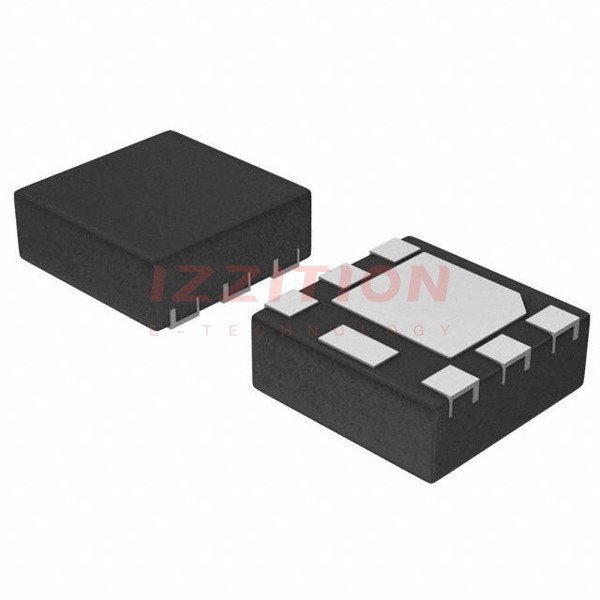

| Supplier Device Package | 6-WDFN (2x2) | 6-WDFN (2x2) |
| Package / Case | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad |
