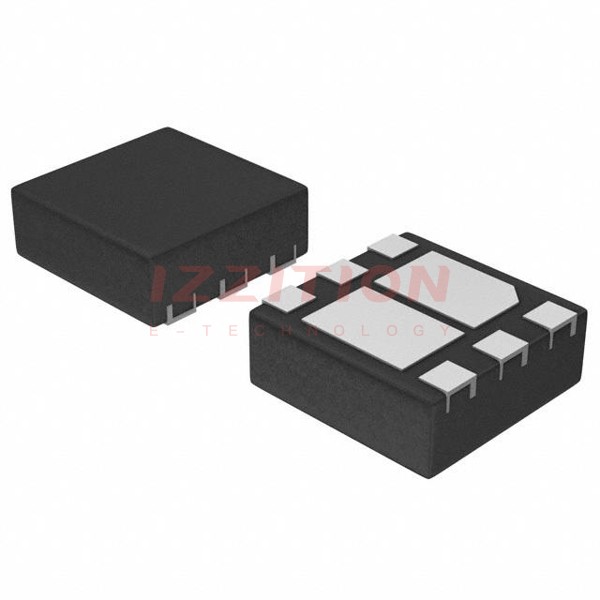

| Part Number | NTLJD3119CTAG | NTLJD3119CTBG |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Active |
| FET Type | N and P-Channel | N and P-Channel |
| FET Feature | Logic Level Gate | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V | 20V |
| Current - Continuous Drain (Id) @ 25°C | 2.6A, 2.3A | 2.6A, 2.3A |
| Rds On (Max) @ Id, Vgs | 65mOhm @ 3.8A, 4.5V | 65mOhm @ 3.8A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 3.7nC @ 4.5V | 3.7nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 271pF @ 10V | 271pF @ 10V |
| Power - Max | 710mW | 710mW |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-WDFN (2x2) | 6-WDFN (2x2) |
