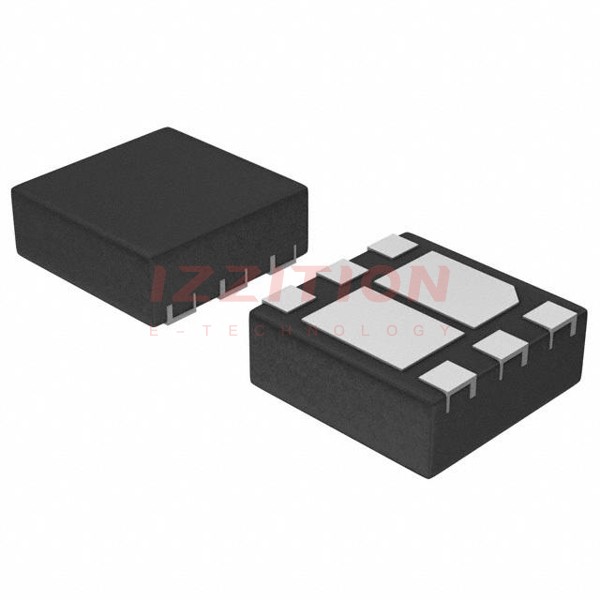

| Part Number | NTLJD2104PTAG | NTLJD2104PTBG |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Obsolete |
| FET Type | 2 P-Channel (Dual) | 2 P-Channel (Dual) |
| FET Feature | Logic Level Gate | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 12V | 12V |
| Current - Continuous Drain (Id) @ 25°C | 2.4A | 2.4A |
| Rds On (Max) @ Id, Vgs | 90mOhm @ 3A, 4.5V | 90mOhm @ 3A, 4.5V |
| Vgs(th) (Max) @ Id | 800mV @ 250µA | 800mV @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 8nC @ 4.5V | 8nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 467pF @ 6V | 467pF @ 6V |
| Power - Max | 700mW | 700mW |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-WDFN (2x2) | 6-WDFN (2x2) |
