onsemi-NTHS4166NT1G - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	4.9A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	22mOhm @ 4.9A, 10V
Vgs(th) (Max) @ Id:	2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	18 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	900 pF @ 15 V
FET Feature:	-
Power Dissipation (Max):	800mW (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	ChipFET™
Package / Case:	8-SMD, Flat Lead

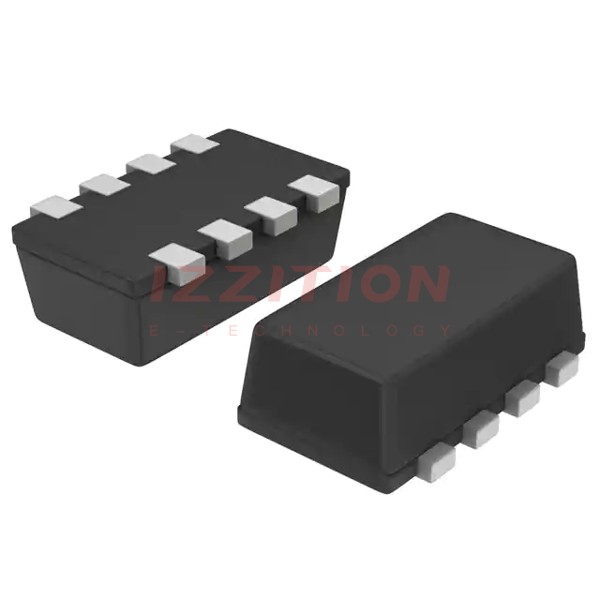

onsemi NTHS4166NT1G
