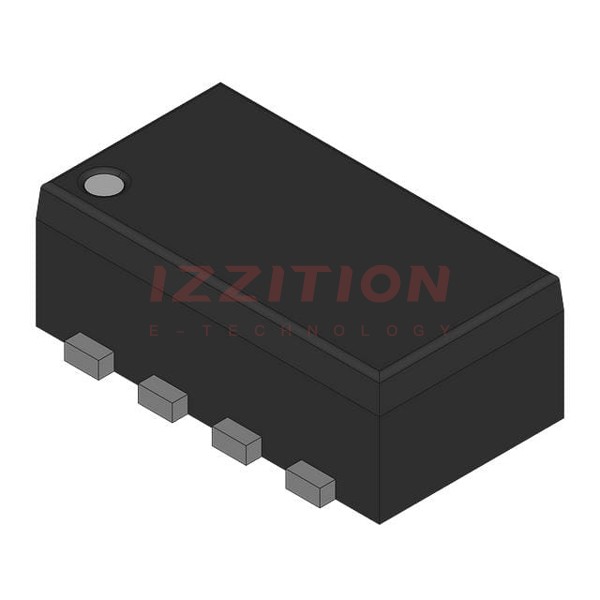

| Part Number | NTHS4111PT1 | NTHS4111PT1G | NTGS4111PT1 |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Obsolete | Obsolete |
| FET Type | - | P-Channel | P-Channel |
| Technology | - | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | - | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | - | 3.3A (Ta) | 2.6A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | - | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | - | 45mOhm @ 4.4A, 10V | 60mOhm @ 3.7A, 10V |
| Vgs(th) (Max) @ Id | - | 3V @ 250µA | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | - | 28 nC @ 10 V | 32 nC @ 10 V |
| Vgs (Max) | - | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | - | 1500 pF @ 24 V | 750 pF @ 15 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | - | 700mW (Ta) | 630mW (Ta) |
| Operating Temperature | - | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | - | Surface Mount | Surface Mount |
| Supplier Device Package | - | ChipFET™ | 6-TSOP |
| Package / Case | - | 8-SMD, Flat Lead | SOT-23-6 Thin, TSOT-23-6 |
