| Part Number | NTHD4508NT1G | NTHD4502NT1G |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Active |
| FET Type | 2 N-Channel (Dual) | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V | 30V |
| Current - Continuous Drain (Id) @ 25°C | 3A | 2.2A |
| Rds On (Max) @ Id, Vgs | 75mOhm @ 3.1A, 4.5V | 85mOhm @ 2.9A, 10V |
| Vgs(th) (Max) @ Id | 1.2V @ 250µA | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 4nC @ 4.5V | 7nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 180pF @ 10V | 140pF @ 15V |
| Power - Max | 1.13W | 640mW |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

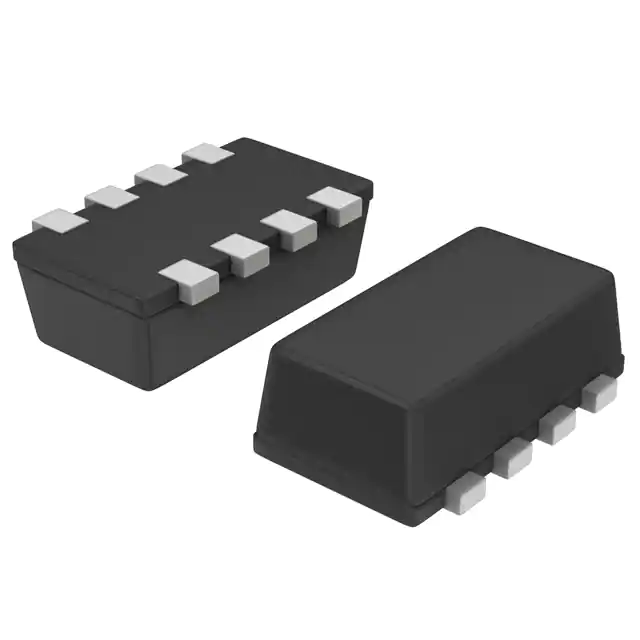

| Package / Case | 8-SMD, Flat Lead | 8-SMD, Flat Lead |
| Supplier Device Package | ChipFET™ | ChipFET™ |
