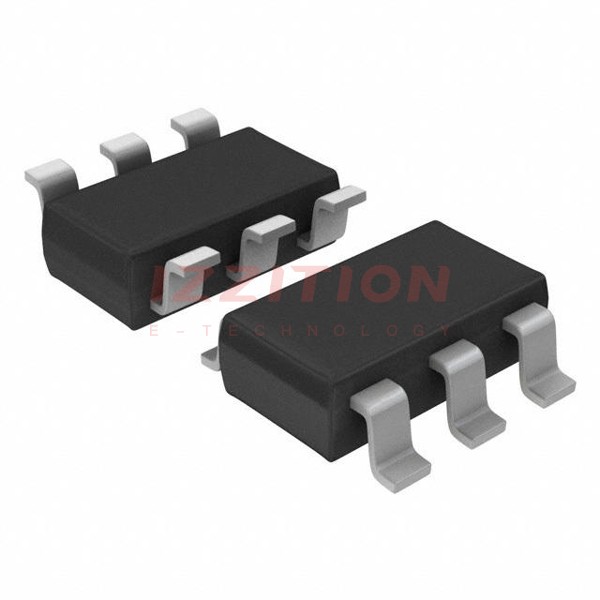

| Part Number | NTGS3441PT1G | NTGS3441T1G | NTGS3447PT1G | NTGS3441BT1G |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| FET Type | P-Channel | P-Channel | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V | 20 V | 12 V | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 1.8A (Ta) | 1.65A (Ta) | 3.4A (Ta) | 2.2A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V | 2.5V, 4.5V | 1.8V, 4.5V | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 110mOhm @ 3A, 4.5V | 90mOhm @ 3.3A, 4.5V | 40mOhm @ 4.7A, 4.5V | 90mOhm @ 3A, 4.5V |
| Vgs(th) (Max) @ Id | 1.6V @ 250µA | 1.5V @ 250µA | 1V @ 250µA | 900mV @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 6 nC @ 4.5 V | 14 nC @ 4.5 V | 15 nC @ 4.5 V | 9 nC @ 4.5 V |
| Vgs (Max) | ±12V | ±8V | ±8V | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 345 pF @ 15 V | 480 pF @ 5 V | 1053 pF @ 6 V | 630 pF @ 10 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 510mW (Ta) | 500mW (Ta) | 700mW (Ta) | 700mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 6-TSOP | 6-TSOP | 6-TSOP | 6-TSOP |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 | SOT-23-6 Thin, TSOT-23-6 | SOT-23-6 Thin, TSOT-23-6 | SOT-23-6 Thin, TSOT-23-6 |
