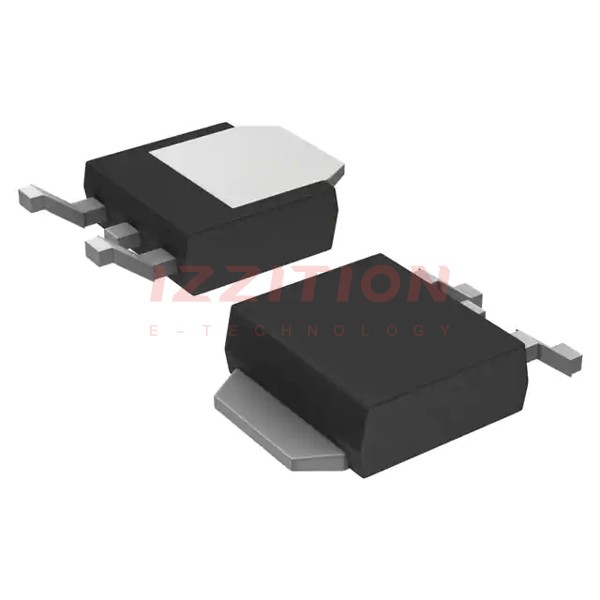

| Part Number | NTDV6414ANT4G | NTD6414ANT4G |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Active |
| FET Type | - | N-Channel |
| Technology | - | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | - | 100 V |
| Current - Continuous Drain (Id) @ 25°C | - | 32A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - | 10V |
| Rds On (Max) @ Id, Vgs | - | 37mOhm @ 32A, 10V |
| Vgs(th) (Max) @ Id | - | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | - | 40 nC @ 10 V |
| Vgs (Max) | - | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | - | 1450 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | - | 100W (Tc) |
| Operating Temperature | - | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | DPAK-3 | DPAK |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 |
