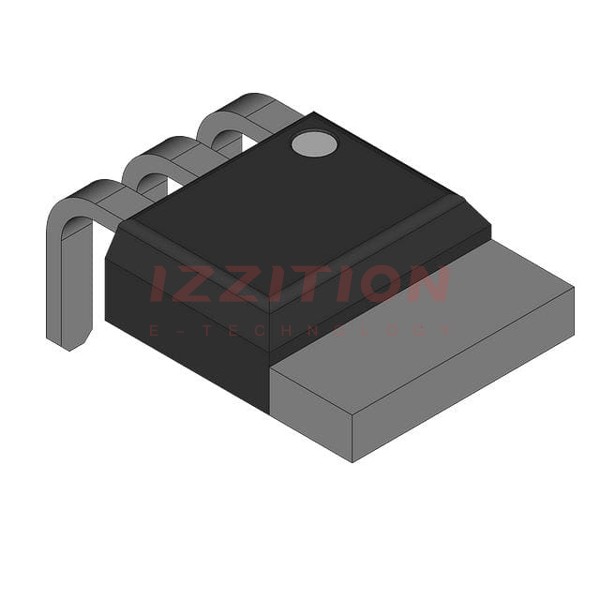

| Part Number | NTD78N03R-1G | NTD70N03R-1G | NTD78N03-1G |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Obsolete | Obsolete |
| FET Type | - | N-Channel | N-Channel |
| Technology | - | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | - | 25 V | 25 V |
| Current - Continuous Drain (Id) @ 25°C | - | 10A (Ta), 32A (Tc) | 11.4A (Ta), 78A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | - | 8mOhm @ 20A, 10V | 6mOhm @ 78A, 10V |
| Vgs(th) (Max) @ Id | - | 2V @ 250µA | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | - | 13.2 nC @ 5 V | 35 nC @ 4.5 V |
| Vgs (Max) | - | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | - | 1333 pF @ 20 V | 2250 pF @ 12 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | - | 1.36W (Ta), 62.5W (Tc) | 1.4W (Ta), 64W (Tc) |
| Operating Temperature | - | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | - | Through Hole | Through Hole |
| Supplier Device Package | - | I-PAK | I-PAK |
| Package / Case | - | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA |
