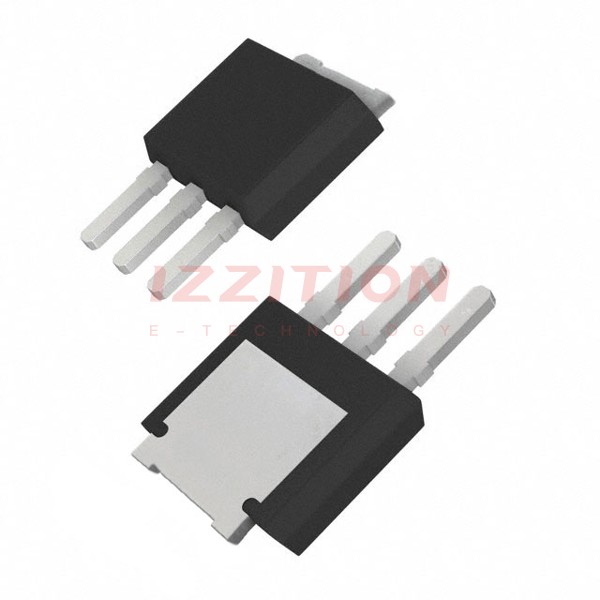

| Part Number | NTD78N03-035 | NTD78N03R-035 |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Active |
| FET Type | N-Channel | - |
| Technology | MOSFET (Metal Oxide) | - |
| Drain to Source Voltage (Vdss) | 25 V | - |
| Current - Continuous Drain (Id) @ 25°C | 11.4A (Ta), 78A (Tc) | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | - |
| Rds On (Max) @ Id, Vgs | 6mOhm @ 78A, 10V | - |
| Vgs(th) (Max) @ Id | 3V @ 250µA | - |
| Gate Charge (Qg) (Max) @ Vgs | 35 nC @ 4.5 V | - |
| Vgs (Max) | ±20V | - |
| Input Capacitance (Ciss) (Max) @ Vds | 2250 pF @ 12 V | - |
| FET Feature | - | - |
| Power Dissipation (Max) | 1.4W (Ta), 64W (Tc) | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | - |
| Mounting Type | Through Hole | - |
| Supplier Device Package | I-PAK | - |
| Package / Case | TO-251-3 Stub Leads, IPak | - |
