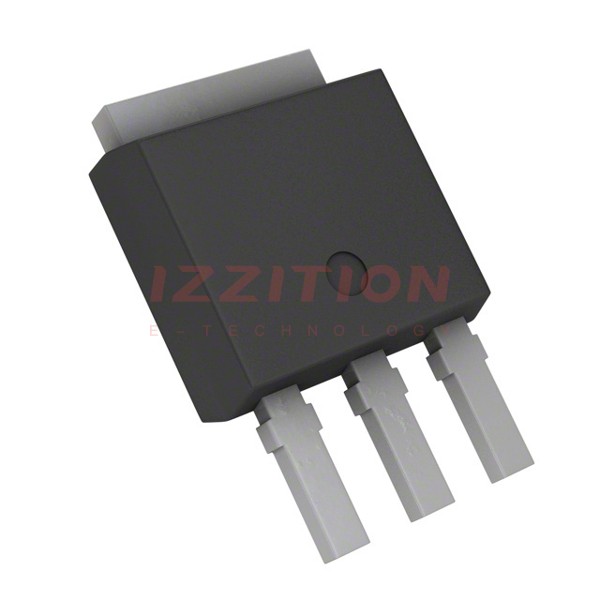

| Part Number | NTD4970N-35G | NTD4979N-35G | NTD4910N-35G | NTD4960N-35G |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 8.5A (Ta), 36A (Tc) | 9.4A (Ta), 41A (Tc) | 8.2A (Ta), 37A (Tc) | 8.9A (Ta), 55A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 11mOhm @ 30A, 10V | 9mOhm @ 30A, 10V | 9mOhm @ 30A, 10V | 8mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA | 2.5V @ 250µA | 2.2V @ 250µA | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 8.2 nC @ 4.5 V | 16.5 nC @ 10 V | 15.4 nC @ 10 V | 22 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 774 pF @ 15 V | 837 pF @ 15 V | 1203 pF @ 15 V | 1300 pF @ 15 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 1.38W (Ta), 24.6W (Tc) | 1.38W (Ta), 26.3W (Tc) | 1.37W (Ta), 27.3W (Tc) | 1.07W (Ta), 35.71W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | I-PAK | I-PAK | I-PAK | I-PAK |
| Package / Case | TO-251-3 Stub Leads, IPak | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Stub Leads, IPak | TO-251-3 Stub Leads, IPak |
