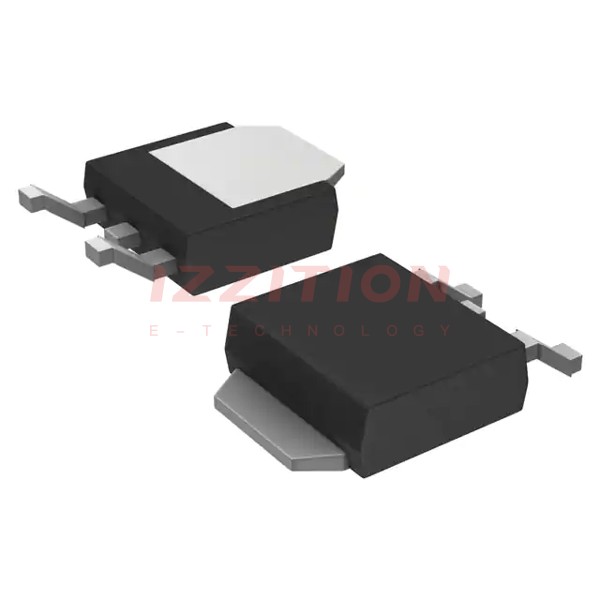

| Part Number | NTD4965NT4G | NTD4969NT4G | NTD4865NT4G | NTD4905NT4G | NTD4960NT4G | NTD4963NT4G |
|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 25 V | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 13A (Ta), 68A (Tc) | 9.4A (Ta), 41A (Tc) | 8.5A (Ta), 44A (Tc) | 12A (Ta), 67A (Tc) | 8.9A (Ta), 55A (Tc) | 8.1A (Ta), 44A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 4.7mOhm @ 30A, 10V | 9mOhm @ 30A, 10V | 10.9mOhm @ 30A, 10V | 4.5mOhm @ 30A, 10V | 8mOhm @ 30A, 10V | 9.6mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA | 2.5V @ 250µA | 2.5V @ 250µA | 2.2V @ 250µA | 2.5V @ 250µA | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 17.2 nC @ 4.5 V | 9 nC @ 4.5 V | 10.8 nC @ 4.5 V | 33 nC @ 10 V | 22 nC @ 10 V | 16.2 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1710 pF @ 15 V | 837 pF @ 15 V | 827 pF @ 12 V | 2340 pF @ 15 V | 1300 pF @ 15 V | 1035 pF @ 12 V |
| FET Feature | - | - | - | - | - | - |
| Power Dissipation (Max) | 1.39W (Ta) | 1.38W (Ta), 26.3W (Tc) | 1.27W (Ta), 33.3W (Tc) | 1.4W (Ta), 44W (Tc) | 1.07W (Ta), 35.71W (Tc) | 1.1W (Ta), 35.7W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | DPAK-3 | DPAK | DPAK | DPAK | DPAK | DPAK |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 |
