| Part Number | NTD4960N-1G | NTD4965N-1G | NTD4969N-1G | NTD4970N-1G | NTD4860N-1G |
|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V | 30 V | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 8.9A (Ta), 55A (Tc) | 13A (Ta), 68A (Tc) | 9.4A (Ta), 41A (Tc) | 8.5A (Ta), 36A (Tc) | 10.4A (Ta), 65A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | - | - | - | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 8mOhm @ 30A, 10V | 4.7mOhm @ 30A, 10V | 9mOhm @ 30A, 10V | 11mOhm @ 30A, 10V | 7.5mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA | 2.5V @ 250µA | 2.5V @ 250µA | 2.5V @ 250µA | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 22 nC @ 10 V | 17.2 nC @ 4.5 V | 9 nC @ 4.5 V | 8.2 nC @ 4.5 V | 16.5 nC @ 4.5 V |
| Vgs (Max) | ±20V | - | - | - | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1300 pF @ 15 V | 1710 pF @ 15 V | 837 pF @ 15 V | 774 pF @ 15 V | 1308 pF @ 12 V |
| FET Feature | - | - | - | - | - |
| Power Dissipation (Max) | 1.07W (Ta), 35.71W (Tc) | - | - | - | 1.28W (Ta), 50W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | - | - | - | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |

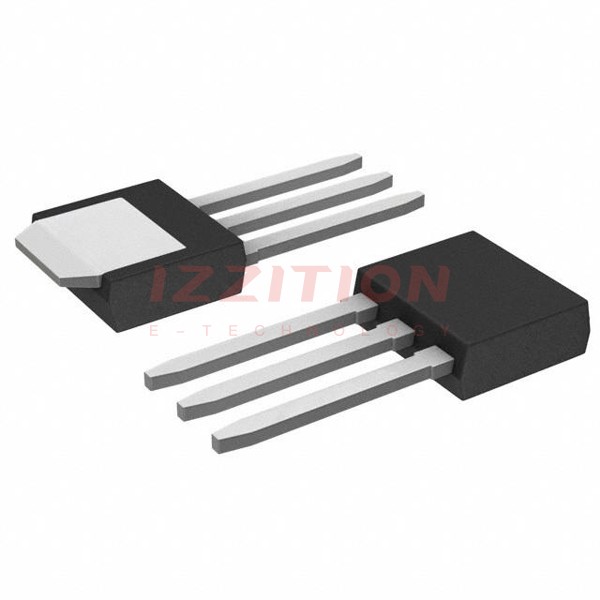

| Supplier Device Package | I-PAK | I-PAK | I-PAK | I-PAK | I-PAK |
| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA |
