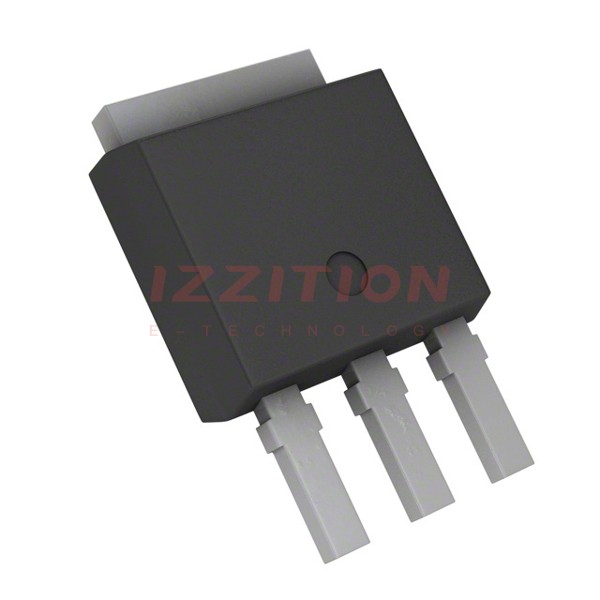

| Part Number | NTD4913N-35G | NTD4963N-35G | NTD4813N-35G | NTD4910N-35G |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 7.7A (Ta), 32A (Tc) | 8.1A (Ta), 44A (Tc) | 7.6A (Ta), 40A (Tc) | 8.2A (Ta), 37A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 11.5V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 10.5mOhm @ 30A, 10V | 9.6mOhm @ 30A, 10V | 13mOhm @ 30A, 10V | 9mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA | 2.5V @ 250µA | 2.5V @ 250µA | 2.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 13 nC @ 10 V | 16.2 nC @ 10 V | 7.9 nC @ 4.5 V | 15.4 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1013 pF @ 15 V | 1035 pF @ 12 V | 860 pF @ 12 V | 1203 pF @ 15 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 1.36W (Ta), 24W (Tc) | 1.1W (Ta), 35.7W (Tc) | 1.27W (Ta), 35.3W (Tc) | 1.37W (Ta), 27.3W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | I-PAK | I-PAK | I-PAK | I-PAK |
| Package / Case | TO-251-3 Stub Leads, IPak | TO-251-3 Stub Leads, IPak | TO-251-3 Stub Leads, IPak | TO-251-3 Stub Leads, IPak |
