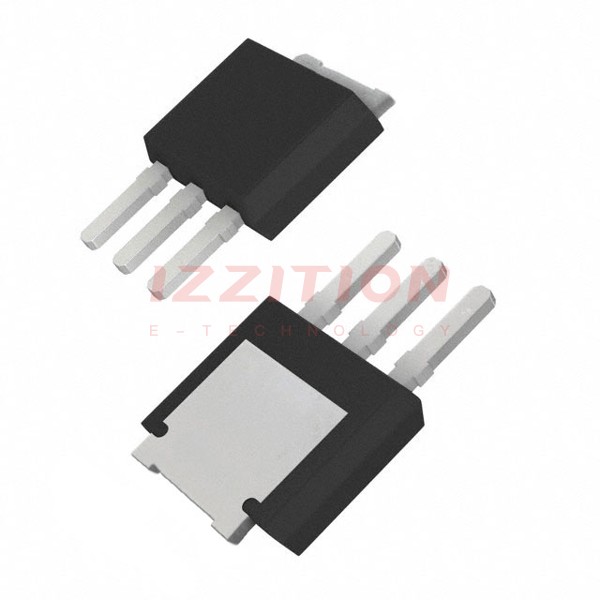

| Part Number | NTD4863NA-35G | NTD4860NA-35G | NTD4863N-35G |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V | 25 V | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 9.2A (Ta), 49A (Tc) | 10.4A (Ta), 65A (Tc) | 9.2A (Ta), 49A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - | - | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 9.3mOhm @ 30A, 10V | 7.5mOhm @ 30A, 10V | 9.3mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA | 2.5V @ 250µA | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 17.8 nC @ 10 V | 21.8 nC @ 10 V | 13.5 nC @ 4.5 V |
| Vgs (Max) | - | - | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 990 pF @ 12 V | 1308 pF @ 12 V | 990 pF @ 12 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 1.27W (Ta), 36.6W (Tc) | 1.28W (Ta), 50W (Tc) | 1.27W (Ta), 36.6W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | I-PAK | I-PAK | I-PAK |
| Package / Case | TO-251-3 Stub Leads, IPak | TO-251-3 Stub Leads, IPak | TO-251-3 Stub Leads, IPak |
