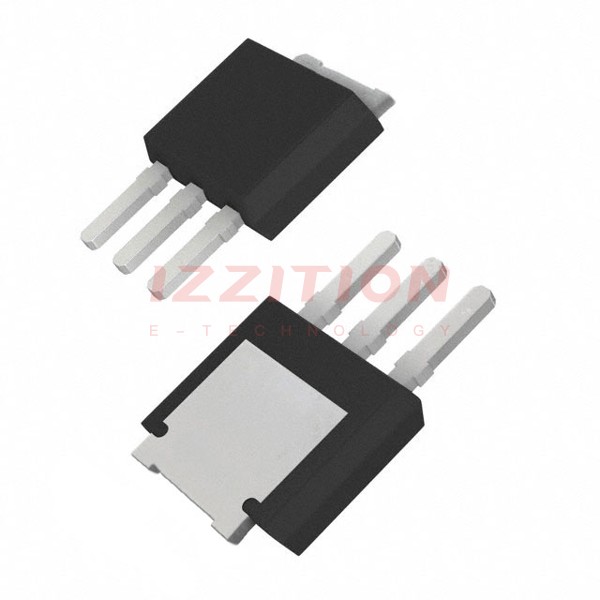

| Part Number | NTD4809N-35G | NTD4809NA-35G | NTD4809NH-35G | NTD4909N-35G | NTD4804N-35G | NTD4805N-35G | NTD4806N-35G | NTD4808N-35G |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V | 30 V | 30 V | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 9.6A (Ta), 58A (Tc) | 9.6A (Ta), 58A (Tc) | 9.6A (Ta), 58A (Tc) | 8.8A (Ta), 41A (Tc) | 14.5A (Ta), 124A (Tc) | 12.7A (Ta), 95A (Tc) | 11.3A (Ta), 79A (Tc) | 10A (Ta), 63A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 11.5V | 4.5V, 11.5V | 4.5V, 11.5V | 4.5V, 10V | 4.5V, 11.5V | 4.5V, 11.5V | 4.5V, 11.5V | 4.5V, 11.5V |
| Rds On (Max) @ Id, Vgs | 9mOhm @ 30A, 10V | 9mOhm @ 30A, 10V | 9mOhm @ 30A, 10V | 8mOhm @ 30A, 10V | 4mOhm @ 30A, 10V | 5mOhm @ 30A, 10V | 6mOhm @ 30A, 10V | 8mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA | 2.5V @ 250µA | 2.5V @ 250µA | 2.2V @ 250µA | 2.5V @ 250µA | 2.5V @ 250µA | 2.5V @ 250µA | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 13 nC @ 4.5 V | 13 nC @ 4.5 V | 15 nC @ 4.5 V | 17.5 nC @ 10 V | 40 nC @ 4.5 V | 48 nC @ 11.5 V | 23 nC @ 4.5 V | 13 nC @ 4.5 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1456 pF @ 12 V | 1456 pF @ 12 V | 2155 pF @ 12 V | 1314 pF @ 15 V | 4490 pF @ 12 V | 2865 pF @ 12 V | 2142 pF @ 12 V | 1538 pF @ 12 V |
| FET Feature | - | - | - | - | - | - | - | - |
| Power Dissipation (Max) | 1.4W (Ta), 52W (Tc) | 1.3W (Ta), 52W (Tc) | 1.3W (Ta), 52W (Tc) | 1.37W (Ta), 29.4W (Tc) | 1.43W (Ta), 107W (Tc) | 1.41W (Ta), 79W (Tc) | 1.4W (Ta), 68W (Tc) | 1.4W (Ta), 54.6W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | I-PAK | I-PAK | I-PAK | I-PAK | I-PAK | I-PAK | I-PAK | I-PAK |
| Package / Case | TO-251-3 Stub Leads, IPak | TO-251-3 Stub Leads, IPak | TO-251-3 Stub Leads, IPak | TO-251-3 Stub Leads, IPak | TO-251-3 Stub Leads, IPak | TO-251-3 Stub Leads, IPak | TO-251-3 Stub Leads, IPak | TO-251-3 Stub Leads, IPak |
