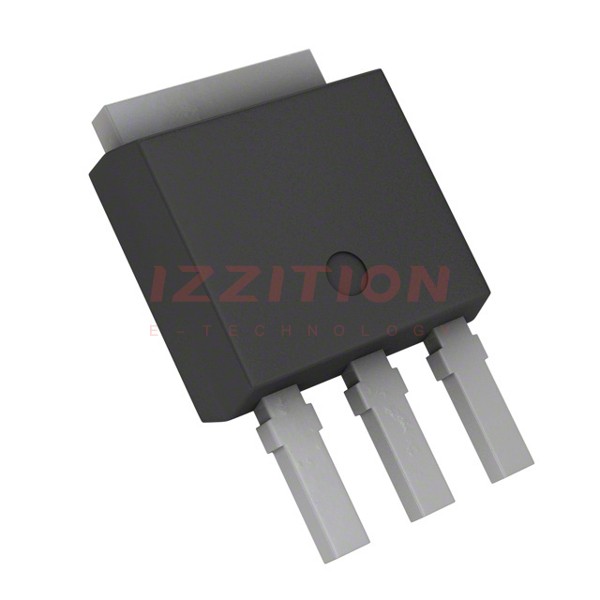

| Part Number | NTD3817N-35G | NTD3813N-35G |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 16 V | 16 V |
| Current - Continuous Drain (Id) @ 25°C | 7.6A (Ta), 34.5A (Tc) | 9.6A (Ta), 51A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 13.9mOhm @ 15A, 10V | 8.75mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 10.5 nC @ 4.5 V | 12.8 nC @ 4.5 V |
| Vgs (Max) | ±16V | ±16V |
| Input Capacitance (Ciss) (Max) @ Vds | 702 pF @ 12 V | 963 pF @ 12 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 1.2W (Ta), 25.9W (Tc) | 1.2W (Ta), 34.9W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | I-PAK | I-PAK |
| Package / Case | TO-251-3 Stub Leads, IPak | TO-251-3 Stub Leads, IPak |
