onsemi-NTBGS4D1N15MC - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	150 V
Current - Continuous Drain (Id) @ 25°C:	20A (Ta), 185A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	8V, 10V
Rds On (Max) @ Id, Vgs:	4.1mOhm @ 104A, 10V
Vgs(th) (Max) @ Id:	4.5V @ 574µA
Gate Charge (Qg) (Max) @ Vgs:	88.9 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	7285 pF @ 75 V
FET Feature:	-
Power Dissipation (Max):	3.7W (Ta), 316W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	D2PAK (TO-263)
Package / Case:	TO-263-7, D²Pak (6 Leads + Tab)

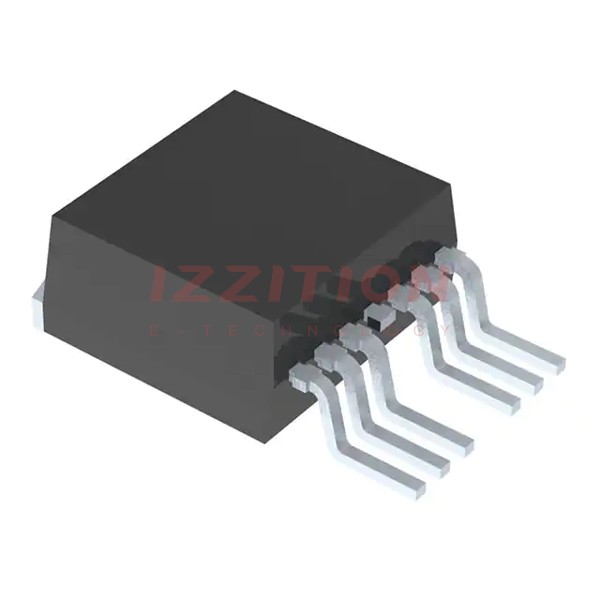

onsemi NTBGS4D1N15MC
