Please send RFQ , we will respond immediately.

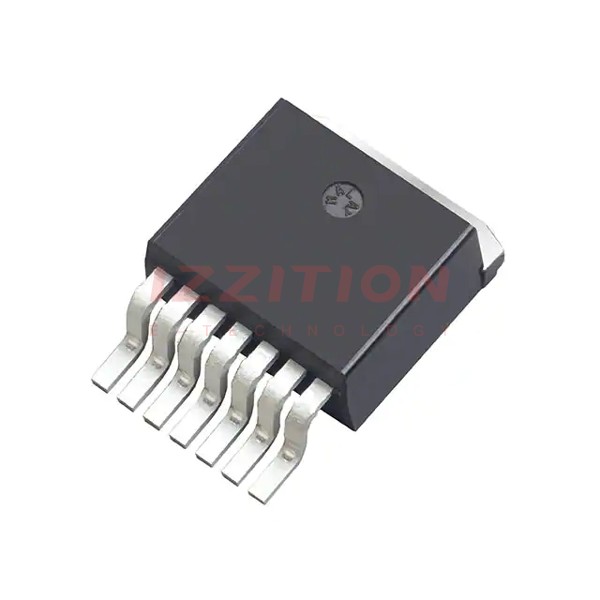

| Part Number | NTBG080N120SC1 | NTBG020N120SC1 | NTBG040N120SC1 |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | SiCFET (Silicon Carbide) | SiCFET (Silicon Carbide) | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 1200 V | 1200 V | 1200 V |
| Current - Continuous Drain (Id) @ 25°C | 30A (Tc) | 8.6A (Ta), 98A (Tc) | 60A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 20V | 20V | 20V |
| Rds On (Max) @ Id, Vgs | 110mOhm @ 20A, 20V | 28mOhm @ 60A, 20V | 56mOhm @ 35A, 20V |
| Vgs(th) (Max) @ Id | 4.3V @ 5mA | 4.3V @ 20mA | 4.3V @ 10mA |
| Gate Charge (Qg) (Max) @ Vgs | 56 nC @ 20 V | 220 nC @ 20 V | 106 nC @ 20 V |
| Vgs (Max) | +25, -15V | +25V, -15V | +25V, -15V |
| Input Capacitance (Ciss) (Max) @ Vds | 1154 pF @ 800 V | 2943 pF @ 800 V | 1789 pF @ 800 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 179W (Tc) | 3.7W (Ta), 468W (Tc) | 357W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | D2PAK-7 | D2PAK-7 | D2PAK-7 |
| Package / Case | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA |
