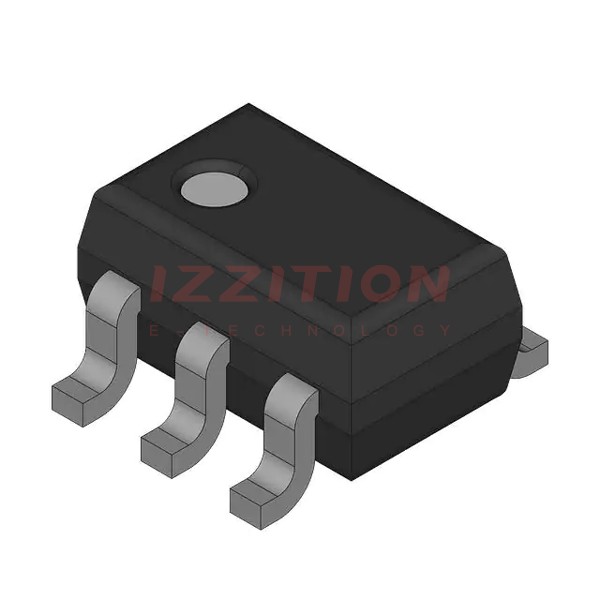

| Part Number | NSVMUN5331DW1T1G | NSVMUN5333DW1T1G | NSVMUN5334DW1T1G | NSVMUN5332DW1T1G | NSVMUN5336DW1T1G |
|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active | Active |
| Transistor Type | - | 1 NPN, 1 PNP - Pre-Biased (Dual) | 1 NPN, 1 PNP - Pre-Biased (Dual) | 1 NPN, 1 PNP - Pre-Biased (Dual) | 1 NPN, 1 PNP - Pre-Biased (Dual) |
| Current - Collector (Ic) (Max) | - | 100mA | 100mA | 100mA | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | - | 50V | 50V | 50V | 50V |
| Resistor - Base (R1) | - | 4.7kOhms | 22kOhms | 4.7kOhms | 100kOhms |
| Resistor - Emitter Base (R2) | - | 47kOhms | 47kOhms | 4.7kOhms | 100kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | - | 80 @ 5mA, 10V | 80 @ 5mA, 10V | 15 @ 5mA, 10V | 80 @ 5mA, 10V |
| Vce Saturation (Max) @ Ib, Ic | - | 250mV @ 1mA, 10mA | 250mV @ 1mA, 10mA | 250mV @ 1mA, 10mA | 250mV @ 300µA, 10mA |
| Current - Collector Cutoff (Max) | - | 500nA | 500nA | 500nA | 500nA |
| Frequency - Transition | - | - | - | - | - |
| Power - Max | - | 250mW | 250mW | 250mW | 187mW |
| Mounting Type | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | - | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | - | SC-88/SC70-6/SOT-363 | SC-88/SC70-6/SOT-363 | SC-88/SC70-6/SOT-363 | SC-88/SC70-6/SOT-363 |
