onsemi-NSVJ5908DSG5T1G - Transistors - JFETs Product Specifications and Latest Quotes

FET Type:	2 N-Channel (Dual)
Voltage - Breakdown (V(BR)GSS):	15 V
Drain to Source Voltage (Vdss):	15 V
Current - Drain (Idss) @ Vds (Vgs=0):	10 mA @ 5 V
Current Drain (Id) - Max:	50 mA
Voltage - Cutoff (VGS off) @ Id:	300 mV @ 100 µA
Input Capacitance (Ciss) (Max) @ Vds:	10.5pF @ 5V (Typ)
Resistance - RDS(On):	-
Power - Max:	300 mW
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount

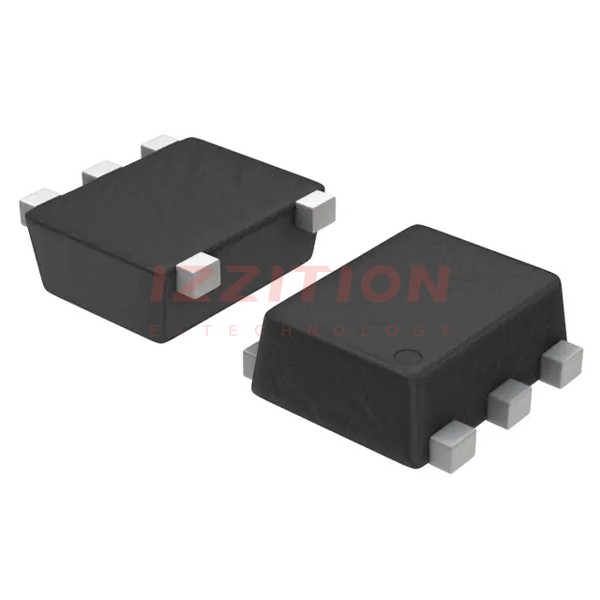

Package / Case:	5-SMD, Flat Leads
Supplier Device Package:	SC-88AFL/MCPH5

onsemi NSVJ5908DSG5T1G
