onsemi-NSVD350HT1G - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	350 V
Current - Average Rectified (Io):	200mA (DC)
Voltage - Forward (Vf) (Max) @ If:	1.1 V @ 100 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	55 ns
Current - Reverse Leakage @ Vr:	5 µA @ 350 V
Capacitance @ Vr, F:	5pF @ 0V, 1MHz
Mounting Type:	Surface Mount

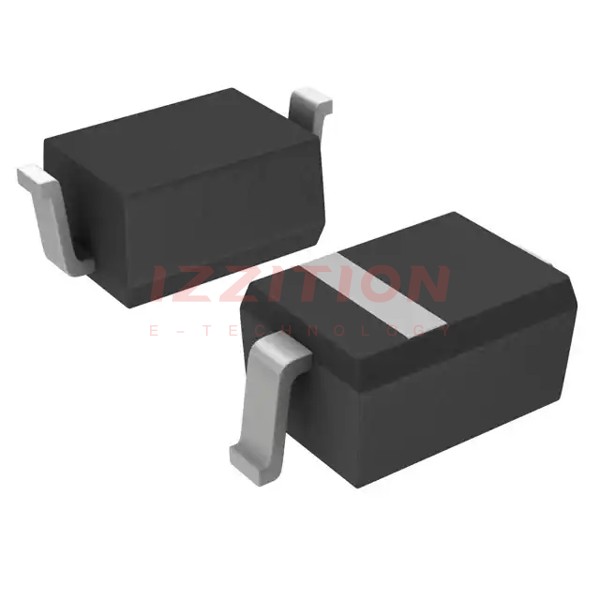

Package / Case:	SC-76, SOD-323
Supplier Device Package:	SOD-323
Operating Temperature - Junction:	-55°C ~ 155°C

onsemi NSVD350HT1G
