onsemi-NSVBAS16W1T1G - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	100 V
Current - Average Rectified (Io):	200mA (DC)
Voltage - Forward (Vf) (Max) @ If:	1.2 V @ 100 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	3 ns
Current - Reverse Leakage @ Vr:	1 µA @ 100 V
Capacitance @ Vr, F:	2pF @ 0V, 1MHz
Mounting Type:	Surface Mount
Package / Case:	6-TSSOP, SC-88, SOT-363
Supplier Device Package:	SC-88/SC70-6/SOT-363
Operating Temperature - Junction:	150°C (Max)

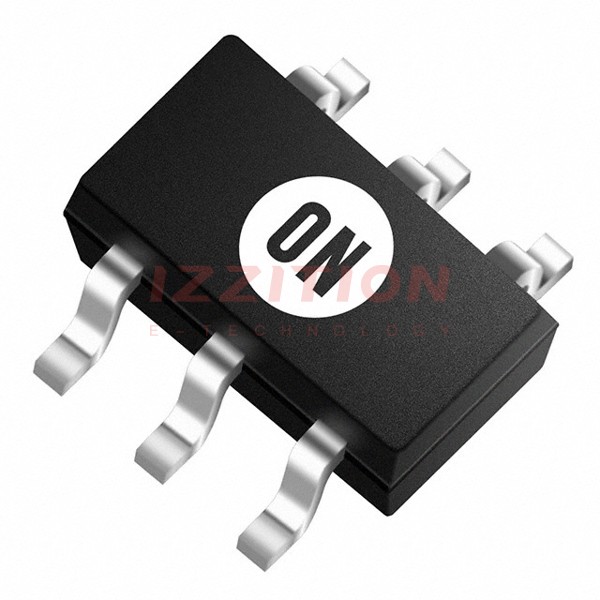

onsemi NSVBAS16W1T1G
