Please send RFQ , we will respond immediately.

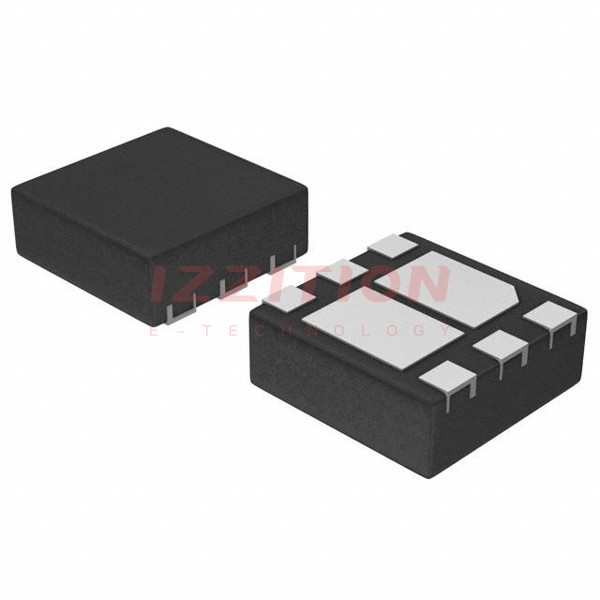

| Part Number | NSV60100DMTWTBG | NSV60101DMTWTBG | NSV60200DMTWTBG |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active |
| Transistor Type | 2 NPN (Dual) | 2 NPN (Dual) | 2 PNP (Dual) |
| Current - Collector (Ic) (Max) | 1A | 1A | - |
| Voltage - Collector Emitter Breakdown (Max) | 60V | 60V | - |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 100mA, 2A | 180mV @ 100mA, 1A | 450mV @ 200mA, 2A |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 120 @ 500mA, 2V | 120 @ 500mA, 2V | 150 @ 100mA, 2V |
| Power - Max | 2.27W | 2.27W | - |
| Frequency - Transition | 155MHz | 180MHz | 155MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-WDFN (2x2) | 6-WDFN (2x2) | 6-WDFN (2x2) |
