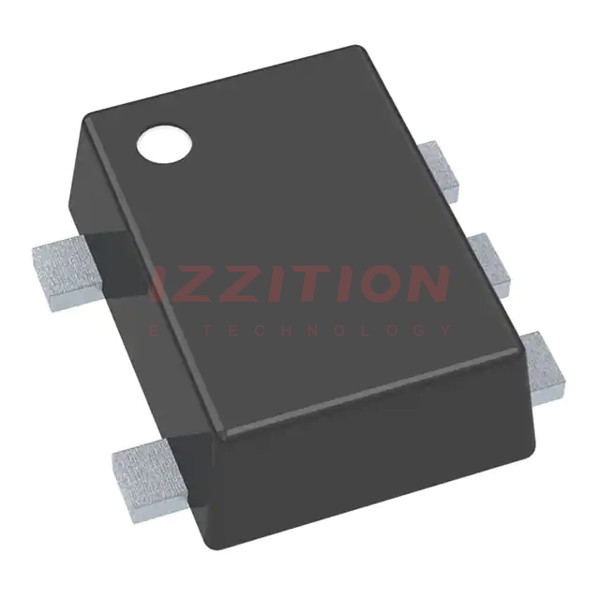

| Part Number | NSTB1003DXV5T1G | NSTB1004DXV5T1G | NSTB1002DXV5T1G |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Active |
| Transistor Type | 1 NPN, 1 PNP - Pre-Biased (Dual) | 1 NPN, 1 PNP - Pre-Biased (Dual) | 1 NPN Pre-Biased, 1 PNP |
| Current - Collector (Ic) (Max) | - | - | 100mA, 200mA |
| Voltage - Collector Emitter Breakdown (Max) | - | - | 50V, 40V |
| Resistor - Base (R1) | - | - | 47kOhms |
| Resistor - Emitter Base (R2) | - | - | 47kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | - | - | 80 @ 5mA, 10V / 100 @ 1mA, 10V |
| Vce Saturation (Max) @ Ib, Ic | - | - | 250mV @ 300µA, 10mA / 400mV @ 5mA, 50mA |
| Current - Collector Cutoff (Max) | - | - | 500nA |
| Frequency - Transition | - | - | 250MHz |
| Power - Max | - | - | 500mW |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOT-553 | SOT-553 | SOT-553 |
| Supplier Device Package | SOT-553 | SOT-553 | SOT-553 |
