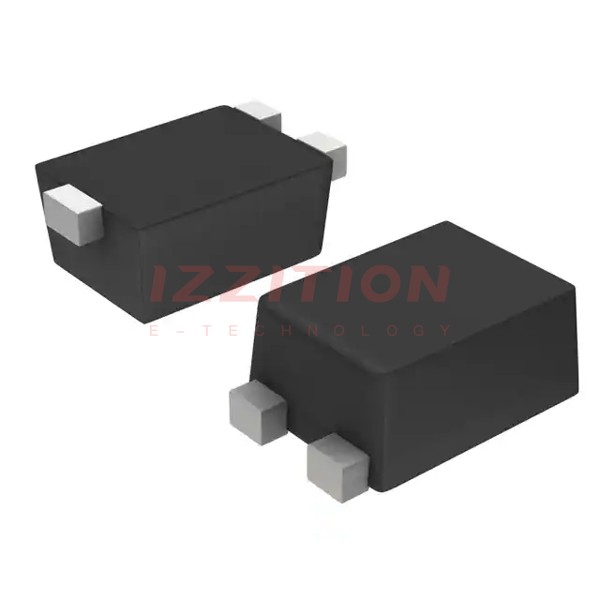

| Part Number | NST3906F3T5G | NST3904F3T5G |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Active |
| Transistor Type | PNP | NPN |
| Current - Collector (Ic) (Max) | 200 mA | 200 mA |
| Voltage - Collector Emitter Breakdown (Max) | 40 V | 40 V |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 5mA, 50mA | 300mV @ 5mA, 50mA |
| Current - Collector Cutoff (Max) | - | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 10mA, 1V | 100 @ 10mA, 1V |
| Power - Max | 290 mW | 290 mW |
| Frequency - Transition | 250MHz | 200MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | SOT-1123 | SOT-1123 |
| Supplier Device Package | SOT-1123 | SOT-1123 |
