| Part Number | NSS60200SMTTBG | NSS60201SMTTBG |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Active |
| Transistor Type | PNP | NPN |
| Current - Collector (Ic) (Max) | 2 A | 2 A |
| Voltage - Collector Emitter Breakdown (Max) | 60 V | 60 V |
| Vce Saturation (Max) @ Ib, Ic | 450mV @ 200mA, 2A | 250mV @ 200mA, 2A |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 150 @ 100mA, 2V | 150 @ 100mA, 2V |
| Power - Max | 1.8 W | 1.8 W |
| Frequency - Transition | 155MHz | 180MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

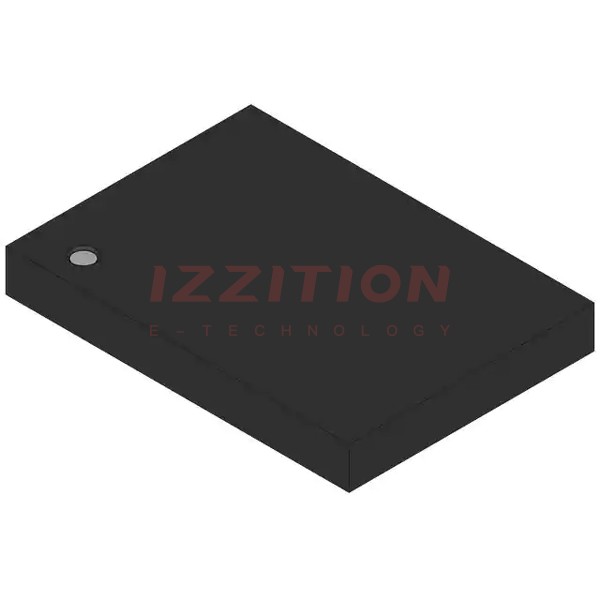

| Package / Case | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-WDFN (2x2) | 6-WDFN (2x2) |
