| Part Number | NSS12601CF8T1G | NSS12600CF8T1G |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Obsolete |
| Transistor Type | NPN | PNP |
| Current - Collector (Ic) (Max) | 6 A | 5 A |
| Voltage - Collector Emitter Breakdown (Max) | 12 V | 12 V |
| Vce Saturation (Max) @ Ib, Ic | 120mV @ 400mA, 4A | 170mV @ 400mA, 4A |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 1A, 2V | 250 @ 1A, 2V |
| Power - Max | 830 mW | 830 mW |
| Frequency - Transition | 140MHz | 100MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

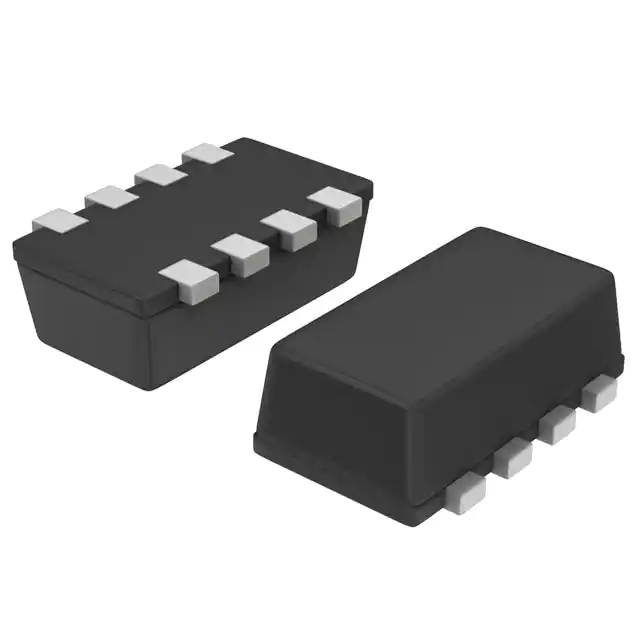

| Package / Case | 8-SMD, Flat Lead | 8-SMD, Flat Lead |
| Supplier Device Package | ChipFET™ | ChipFET™ |
