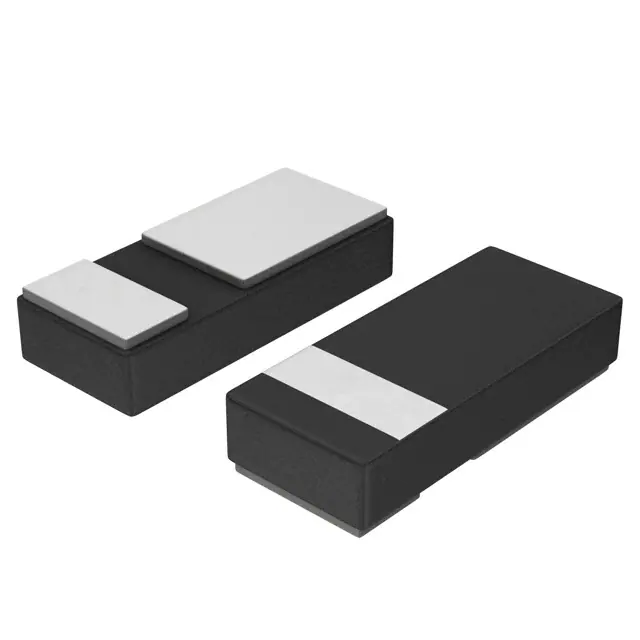

| Part Number | NSR10F30QNXT5G | NSR10F40QNXT5G | NSR20F30QNXT5G | NSR10F30NXT5G |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Active |
| Diode Type | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V | 40 V | 30 V | 30 V |
| Current - Average Rectified (Io) | 1A (DC) | 1A (DC) | 2A (DC) | 1A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 470 mV @ 1 A | 490 mV @ 1 A | 480 mV @ 2 A | 470 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - |
| Current - Reverse Leakage @ Vr | 100 µA @ 30 V | 100 µA @ 40 V | 150 µA @ 30 V | 100 µA @ 30 V |
| Capacitance @ Vr, F | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-XDFN | 2-XDFN | 2-XDFN | 2-XDFN |
| Supplier Device Package | 2-DSN (1.4x0.6) | 2-DSN (1.4x0.6) | 2-DSN (1.6x.80) | 2-DSN (1.4x0.6) |
| Operating Temperature - Junction | -55°C ~ 125°C | 150°C (Max) | 150°C (Max) | 150°C (Max) |
